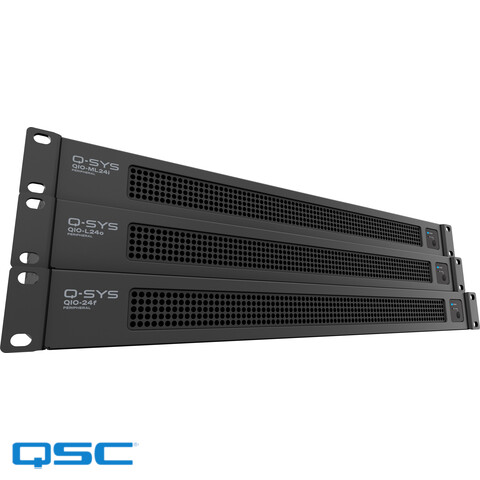

Q-SYS I/O Expanders providing 24 inputs, 24 outputs or 8+8+8 in/out/flex, supports network/peripheral redundancy
Q-Sys inn- og útgangstæki með ýmist 24 rásir inn, 24 rásir út eða 8+8+8 inn/út/flex
| Framleiðandi: QSC |
| Vörulína: Q-SYS |
| Eiginleikar: 24 rásir, GPIO |
| Gerð: Rackmount |
| Tengi: RJ-45/8P8C, Phoenix/Euroblock, IEC C13/14 |
| Notkun: Skólar og félagsmiðstöðvar, Fundir og skrifstofur, Veitingar og þjónusta |
Vörunúmer:
QSC-QIO-24kynning
Features & Benefits
- Native, high-density audio I/O for Q-SYS

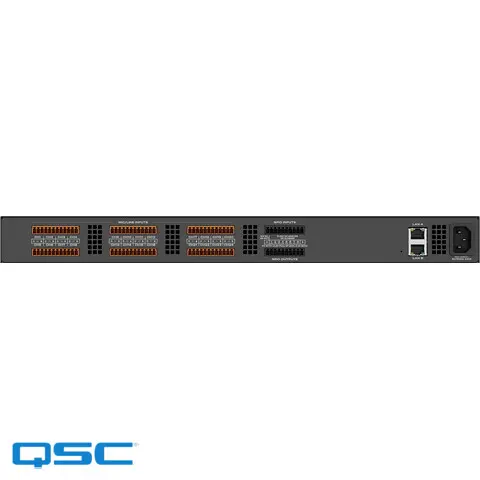

- QIO-ML24i: Twenty-four (24) mic/line level inputs
- QIO-L24o: Twenty-four (24) line level outputs

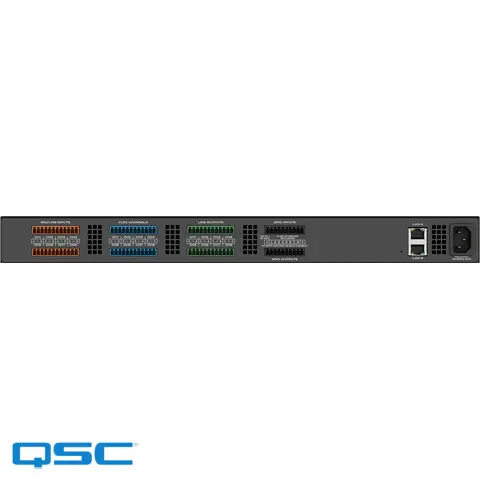

- QIO-24f: Eight (8) mic/line level inputs, eight (8) software-definable Flex channels and eight (8) line level outputs
- Supports both network and peripheral redundancy
- 1RU form factor
- 8 x 8 GPIO to integrate third-party device control connectivity
- Configurable +48 VDC phantom power on inputs
- Microphone detection on inputs enables monitoring, usage statistics, and failure notifications
- Integrated relay mute on outputs enables redundant audio output for peripheral redundancy and prevents power-up transients
- Two (2) gigabit Ethernet ports for redundant networked audio
- Surface- or rack-mountable
- QIO-CK redundancy cable kit (sold separately)
