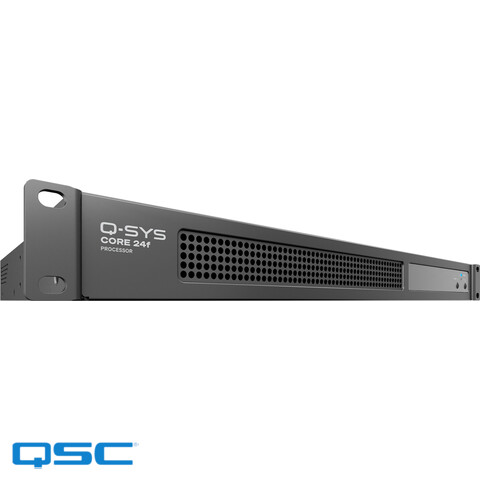

Q-SYS Core 24f Processor, 24ch local audio I/O, 8+8 Dante license, quad ethernet ports, USB AV bridging, 8+8 GPIO, 24 AEC processors, includes scripting/UCI functionality
Q-Sys heili. 24 hljóðrásir inn/út á tækinu, 160+160 samtals rásir á netinu, stýringar fyrir alls kyns, Dante, AEC, fjögur net port, 8+8 GPIO o.fl.
| Framleiðandi: QSC |
| Vörulína: Q-SYS |
| Gerð: Rackmount |
| Eiginleikar: Dante, AES67, GPIO, RS-232 |

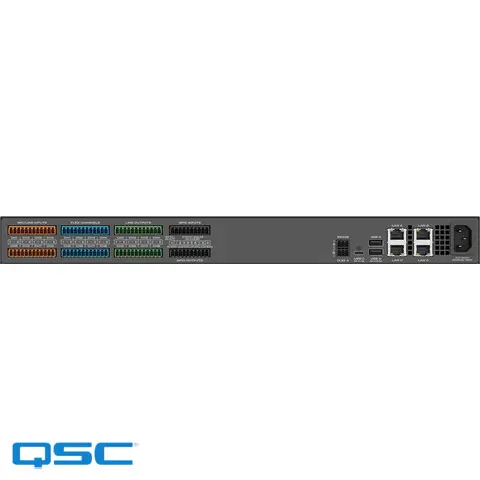

| Tengi: RJ-45/8P8C, Phoenix/Euroblock, USB, USB-C, IEC C13/14 |
| Notkun: Fundir og skrifstofur, Íþróttahús og vellir, Skólar og félagsmiðstöðvar, Veitingar og þjónusta |
Vörunúmer:
QSC-CORE 24f
Features & Benefits
- Up to 160 x 160 network I/O channels
- 24 channels of analog I/O, including 8 software-definable Flex channels
- 8 x 8 GPIO to integrate third-party device control connectivity
- Includes 8 x 8 Software-based Dante channels (licensable up to 64 x 64)
- 24x AEC channels @ 200 ms
- Integrated AV bridging via USB-C
- Two (2) 2.5 Gbps Ethernet ports for redundant networked audio (QLAN, AES67, VoIP, WAN, Media Streaming, etc.)
- Two (2) 2.5 Gbps independent, auxiliary Ethernet ports
- Supports up to ten (10) Q-SYS NM-T1 tabletop microphones
- Host up to 8 instances of a VoIP softphone

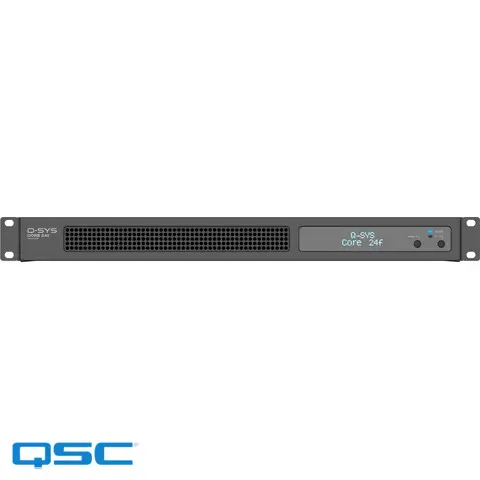

- Includes OLED front display
- 1RU form factor
