OPTI LITE Multifunction Controller with 16 inputs and customizable outputs
IP stýring á DIN-rail með 16 inngöngum og sérsniðnum útgöngum
| Framleiðandi: P5 |
| Notkun: Fundir og skrifstofur, Rafverktakar |
| Gerð: DIN 43880 (f. DIN skinnu) |
| Eiginleikar: DALI, GPIO |
| Spenna: 11.8 - 14.4 V, 14.5 - 17.7 V, 17.8 - 22.7 V |
Vörunúmer:
P5-OPTILITE Mainboard

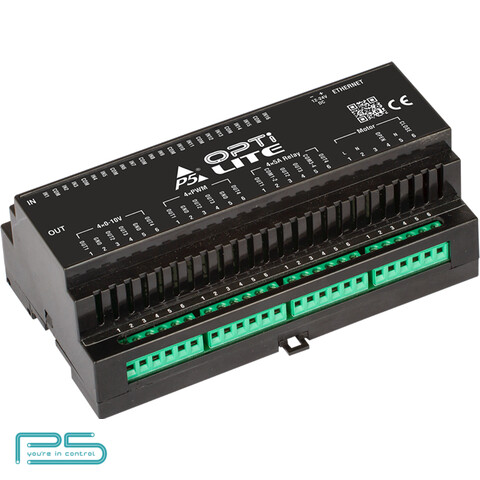

P5 Opti Lite has been developed with total flexibility and cost-effectiveness in mind and will revolutionize the way projects are managed.
The outputs of Opti Lite units are tailor-made. You don’t have to pay for unused channels any more. Opti Light is the ultimate approach to small and multi-dwelling unit projects.
OPTI Lite is basically a 4 in 1 FutureNow (the established product range by P5) with more power and resources. You no longer have to buy a different box for each function. You can combine four different functions in a single box. For example, you can use a single OPTI Lite unit to control a few on/off lights, RGB LED lighting, a blind and even have digital inputs for sensors/manual control or activating macros/scenes.

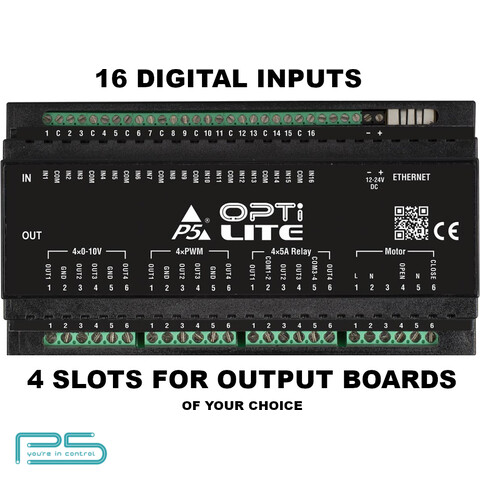

The OPTI Lite main board has 16 digital inputs and slots for 4 Output Boards.
OPTI Lite comes with the Output Boards in place so you must specify the type of boards at the time of the order.
Main features
Scalability
- Modular 4 in 1
- Cost effective
- No more wasted channels
- No more wasted space
- Ideal for MDU projects (a large number of the same small systems)
Flexibility
- 16 digital inputs on the mainboard
- Modular hardware design
- Tailor-made outputs by combining various types of output boards
- Output functions triggered by input events
Simplicity
- No coding needed
