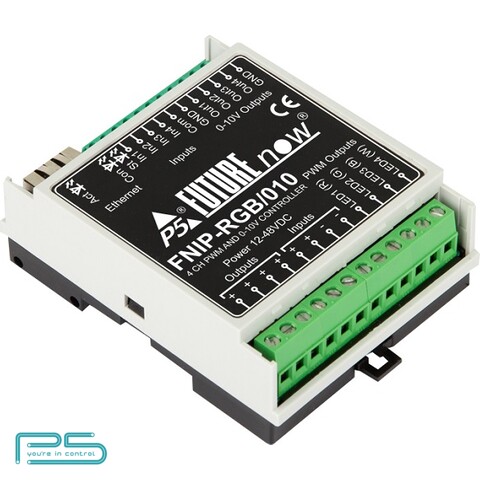

FNIP 4 Channel Low Voltage RGB(W) Dimmer and 0-10V Outputs
IP stýrður 4 rása LED dimmer ásamt 4 hliðrænum útgöngum á DIN-rail
| Framleiðandi: P5 |
| Notkun: Rafverktakar, Leikhús |
| Gerð: DIN 43880 (f. DIN skinnu) |
| Tengi: RJ-45/8P8C |
| Spenna: 11.8 - 14.4 V, 14.5 - 17.7 V, 17.8 - 22.7 V, 22.8 - 29.7 V, 29.8 - 42.3 V, 42.4 - 50 V |
Vörunúmer:
P5-FNIP-RGB/010
Main features
- 4 channel single color LED lighting or one channel RGB(W) control.
- 4 channels of analog 0 – 10V control.
- Remote control over LAN.
- Local control inputs.
- Scenes stored in the module.
♦ DIN rail or Surface (with additional mounting flaps) Mount.
♦ 4 x 0-10V control outputs for valves, fans, lighting, etc.
♦ 4 x 8A low-voltage, PWM control outputs (max 400W/channel at 48V).
♦ Simple connection for the LEDs (power is distributed within the module).
♦ 4 optically isolated multi-purpose digital inputs for contact sensors and manual operation.
♦ Single color, RGB and RGBW LED strip support.
♦ Built-in web server for configuration, control and monitoring.
♦ Color picker.
♦ TCP communication protocol (API) with simple ASCII commands.
♦
Free mobile apps.
♦ Multiple users with different user rights.
♦ Automatic event reporting of input and output status changes.
♦ Firmware upgrade via LAN.
♦ Scenes stored in the modules can be activated from any input on any module on the network.
