FNIP 8 Channel Ethernet Relay Switch

IP stýring á DIN-rail með átta 16A relay-um

73.465 kr 73465.0 ISK 73.465 kr VSK innifalinn

Framleiðandi
- P5
Notkun
- Rafverktakar
Notkun
- Fundir og skrifstofur
Tengi
- RJ-45/8P8C
Spenna
- 11.8 - 14.4 V
Spenna
- 14.5 - 17.7 V
Spenna
- 17.8 - 22.7 V

Þessi samsetning er ekki til.

Bæta í körfu

Framleiðandi: P5

Notkun: Rafverktakar, Fundir og skrifstofur

Tengi: RJ-45/8P8C

Spenna: 11.8 - 14.4 V, 14.5 - 17.7 V, 17.8 - 22.7 V

Afhent innan sólarhrings ef varan er til á lager. Verð á vörum sem eru ekki á lager eru til viðmiðunar. Hafið samband fyrir fyrirspurnir um vörur sem eru án verða eða ekki á lager.

Vörunúmer: P5-FNIP-8x16A.v4

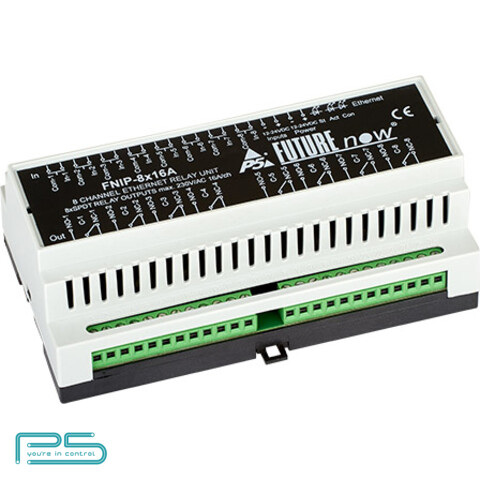

The FNIP-8x16A is an 8 channel relay module used for switching any type of load or circuit either via its local inputs, custom TCP protocol or its built-in web server.

All-purpose heavy-duty relay outputs for switching any type of load.
8 x 230V/16A SPDT (NO & NC) dry contact outputs.
8 optically isolated multi-purpose digital inputs for contact sensors and manual operation.
Built-in web server for configuration, control and monitoring.
TCP communication protocol (API) with simple ASCII commands.
Multiple users with different user rights.
Automatic event reporting of input and output status changes.
Firmware upgrade via LAN.
Scenes stored in the modules can be activated from any input on any module on the network.
Modules can send out custom TCP/IP commands to control A/V or other equipment.

Data sheet
