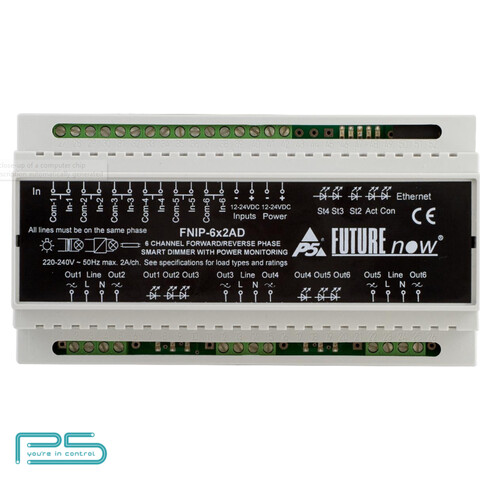

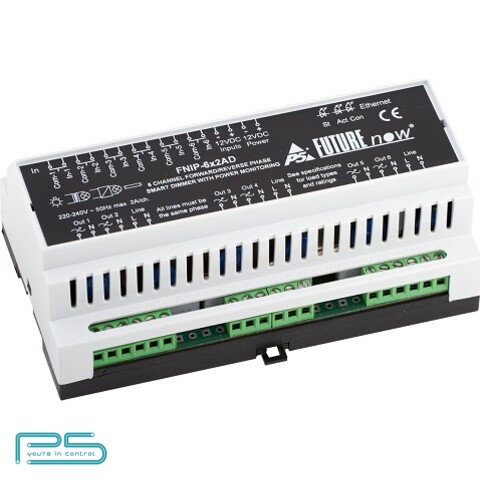

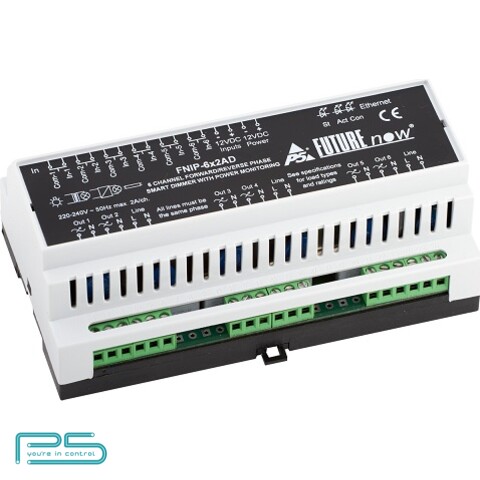

FNIP 6 Channel Ethernet Smart Dimmer with Energy Metering
6 rása hefbundinn ljósadimmer á DIN-rail með orkumælingu
| Framleiðandi: P5 |
| Notkun: Rafverktakar |
| Gerð: DIN 43880 (f. DIN skinnu) |
| Eiginleikar: Orkumæling |
| Tengi: RJ-45/8P8C |
| Spenna: 11.8 - 14.4 V, 14.5 - 17.7 V, 17.8 - 22.7 V, 22.8 - 29.7 V |
Vörunúmer:
P5-FNIP-6x2AD
The FN485-6x2AD is a 6 channel dimmer module used for switching and dimming up to six lighting loads either via local inputs, custom TCP protocol or its built-in web server.
- Both trailing and leading edge dimming (dimming of resistive, capacitive and inductive loads). Automatic load type detection.
- 6 optically isolated multi-purpose digital inputs for contact sensors and manual operation.
- Overload protection.
- Adjustable minimum and maximum dim levels and ramp rate.
- Built-in web server for configuration, control and monitoring.
- TCP communication protocol (API) with simple ASCII commands.
- Multiple users with different user rights.
- Automatic event reporting of input and output status changes.
- Firmware upgrade via LAN.
- Scenes stored in the modules can be activated from any input on any module on the network.
