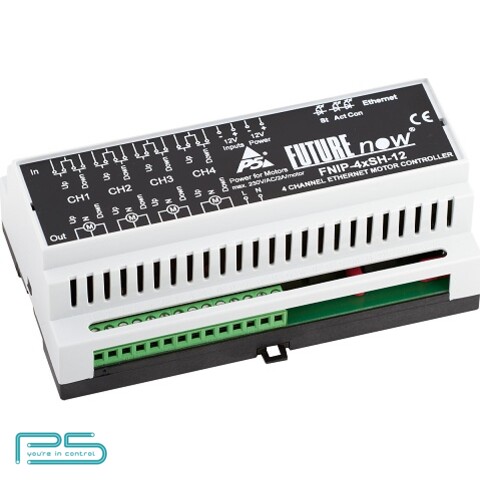

The FNIP-4xSH is a 4 channel window shading controller used for controlling motorized window coverings, such as shades, shutters, blinds, curtains and projection screens, and any other devices equipped with four-wire bidirectional AC motors.
- 4 outputs for controlling 4 four-wire (up/down/neutral/Earth) bidirectional AC motors.
- 4x2 (up/down) optically isolated digital inputs for contact sensors or manual operation.
- Delay when changing direction to protect the motor. Mechanical and electronic latch preventing the motor from being driven in both directions at the same time.
- Up, Down, Stop, Go-to and Go-by commands.
- Position tracking.
- Adjustable motor running times.
- Built-in web server for configuration, control and monitoring.
- TCP communication protocol (API) with simple ASCII commands.
- Multiple users with different user rights.
- Automatic event reporting of input and output status changes.
- Firmware upgrade via LAN.
