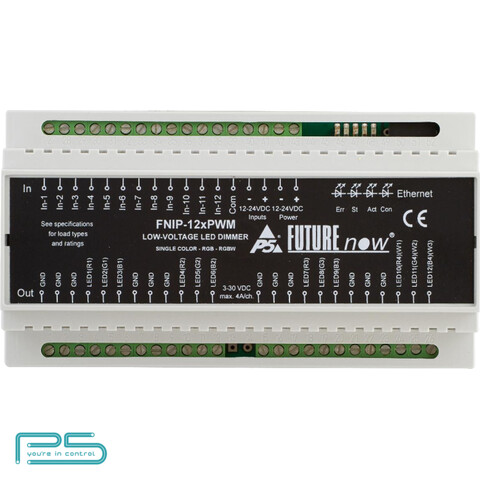

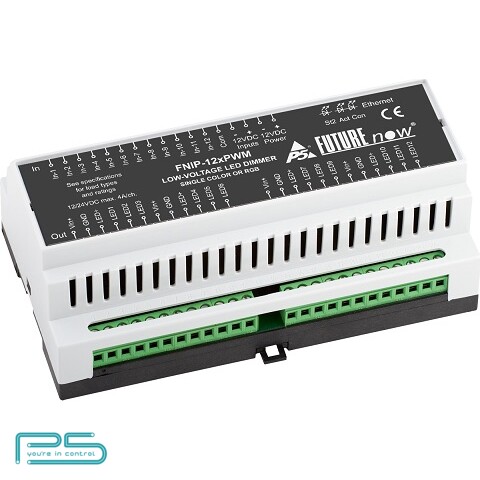

The FNIP-12xPWM is a 12 channel low voltage dimmer module used for switching and dimming up to 12 low voltage LED lighting loads either via local inputs, custom TCP protocol or its builtin web server.
- 12 x 4A low-voltage PWM outputs.
- 12 optically isolated multi-purpose digital inputs for contact sensors and manual operation.
- Single colour, RGB and RGBW LED strip support.
- Colour picker feature.
- Built-in web server for configuration, control and monitoring.
- TCP communication protocol (API) with simple ASCII commands.
- Multiple users with different user rights.
- Automatic event reporting of input and output status changes.
- Firmware upgrade via LAN.
- Scenes stored in the modules can be activated from any input on any module on the network.
