FNIP 12 Channel Ethernet Thermostat

IP stýrt 12 rása thermostat á DIN-rail

109.256 kr 109256.0 ISK 109.256 kr VSK innifalinn

Framleiðandi
- P5
Notkun
- Rafverktakar
Gerð
- DIN 43880 (f. DIN skinnu)
Tengi
- RJ-45/8P8C
Spenna
- 11.8 - 14.4 V
Spenna
- 14.5 - 17.7 V
Spenna
- 17.8 - 22.7 V

Þessi samsetning er ekki til.

Bæta í körfu

Framleiðandi: P5

Notkun: Rafverktakar

Gerð: DIN 43880 (f. DIN skinnu)

Tengi: RJ-45/8P8C

Spenna: 11.8 - 14.4 V, 14.5 - 17.7 V, 17.8 - 22.7 V

Afhent innan sólarhrings ef varan er til á lager. Verð á vörum sem eru ekki á lager eru til viðmiðunar. Hafið samband fyrir fyrirspurnir um vörur sem eru án verða eða ekki á lager.

Vörunúmer: P5-FNIP-12xMZT

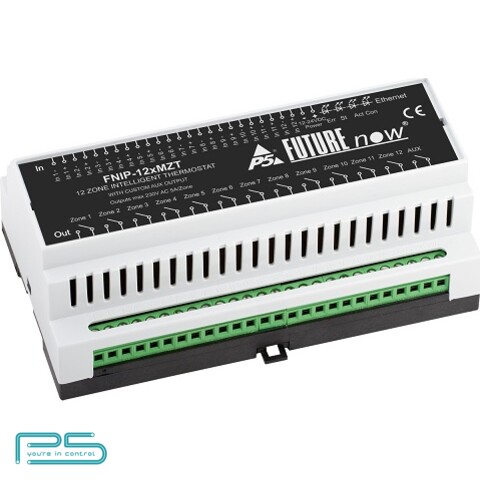

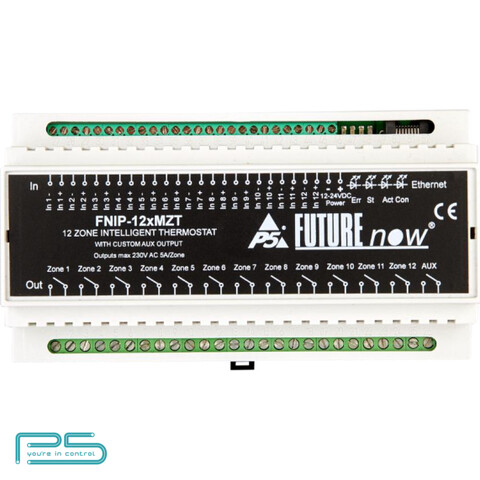

The FNIP-12xMZT is a 12 in 1 multi-zone thermostat and can be considered as 12 separate programmable thermostats in one DIN Rail enclosure.

12 x NO relay outputs to control valves.
12 inputs for analog temperature sensors.
Heating and cooling modes. Scheduled heating/cooling programs.
Custom programmable extra relay output ideal for boiler control.
Standalone operation. Setpoint and schedule stored, decision made within the module.
Inputs support most analog temperature sensor types.
Built-in web server for configuration, control and monitoring.
TCP communication protocol (API) with simple ASCII commands.
Automatic event reporting of input and output status changes.
Firmware upgrade via LAN.

Data sheet
